NAVIGATION THROUGH THE DAM 2 : THE WORLD´S LARGEST SHIP LIFT FOR SMALLER SHIPS (UPTO 3000 TONNES)

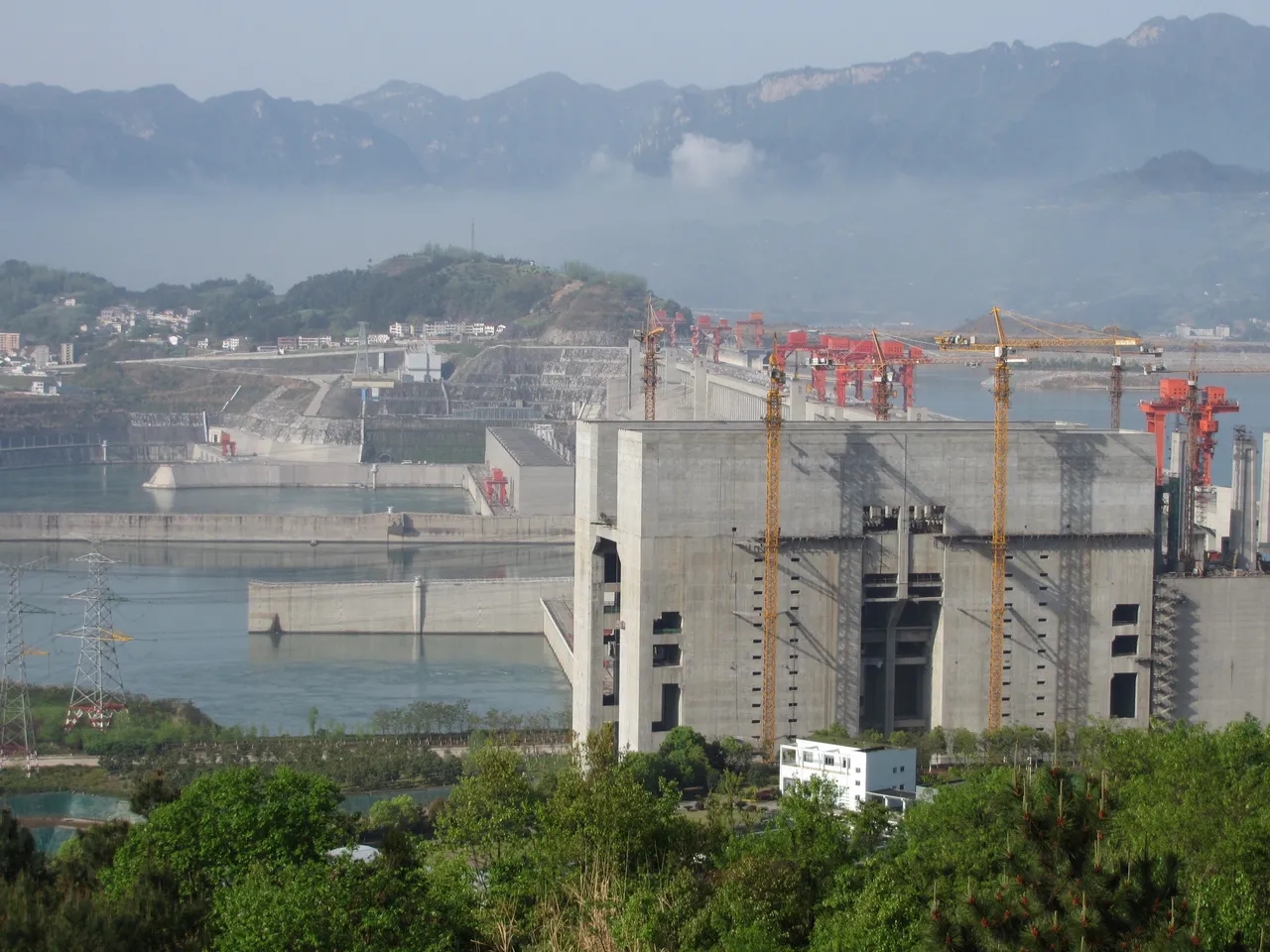

THE THREE GORGES MULTI PURPOSE PROJECT : THE SHIP LIFT / ELEVATOR FOR SMALL SHIPS APPROACHING THE DAMTHE THREE GORGES MULTI PURPOSE PROJECT : THE SHIP LIFT / ELEVATOR FOR SMALL SHIPS APPROACHING THE DAMTHE THREE GORGES MULTI PURPOSE PROJECT : THE SHIP LIFT / ELEVATOR FOR SMALL SHIPS – APPROACHING THE DAMTHE THREE GORGES MULTI PURPOSE PROJECT : THE SHIP LIFT / ELEVATOR FOR SMALL SHIPS ON THE LIFT THE THREE GORGES MULTI PURPOSE PROJECT : THE SHIP LIFT / ELEVATOR FOR SMALL SHIPS ON THE LIFTTHE THREE GORGES MULTI PURPOSE PROJECT : THE SHIP LIFT / ELEVATOR FOR SMALL SHIPS ON THE LIFT : DESCENDING

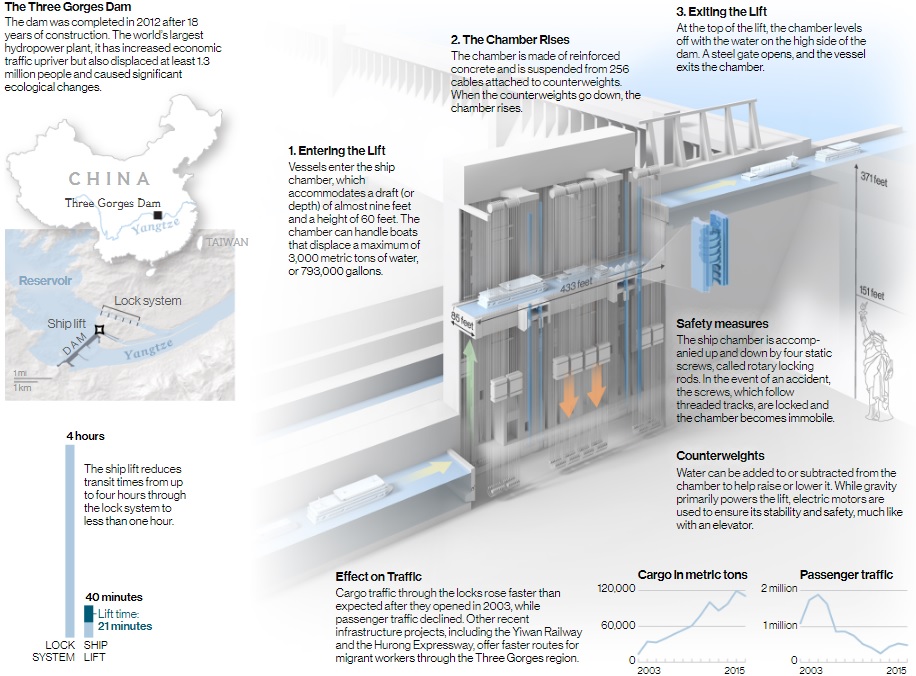

Ship lift – An elevator for vessels upto 3000 tonnes
The shiplift, a kind of elevator, can lift vessels of up to 3,000 tonnes, at a fraction of the time to transit the staircase locks.
The vertical distance traveled is 113 m (371 ft),
The size of the ship lift’s basin is 120 m × 18 m × 3.5 m (394 ft × 59 ft × 11 ft)
The ship lift takes 30 to 40 minutes to transit, as opposed to the three to four hours for stepping through the locks
One complicating factor is that the water level can vary dramatically
The ship lift must work even if water levels vary by 12 meters (39 ft) on the lower side, and 30 m (98 ft) on the upper side.
The ship lift’s design uses a helical gear system, to climb or descend a toothed rack.
